Tamarack Solar Racking & Mounting

Fast-install mounting solutions for rooftops, ground arrays, and pole/wall applications, built for clean wire management and simple, repeatable installs.

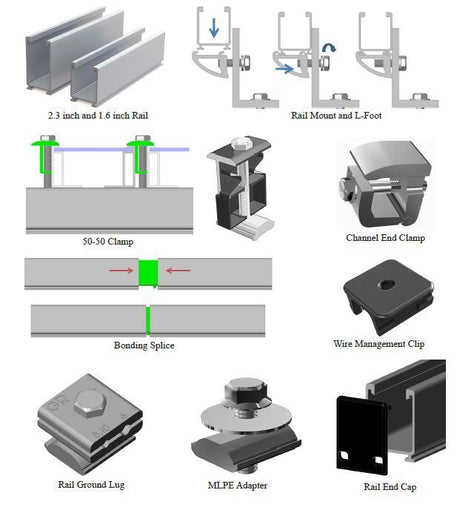

• One clamp, fewer parts: Tamarack’s 5050 clamp functions as mid or end clamp (frame fit depends on model).
• Clean wire management: Rails route PV + MLPE wiring inside open channels.
• Installer-friendly hardware: Standard ½" socket workflow on the Flush Mount system.
• Code & safety: UL 2703 listing and Class A fire rating (Flush Mount system).
• Built for tough sites: Ground Mount system rated for high wind/snow conditions (per Tamarack specs).

Applications

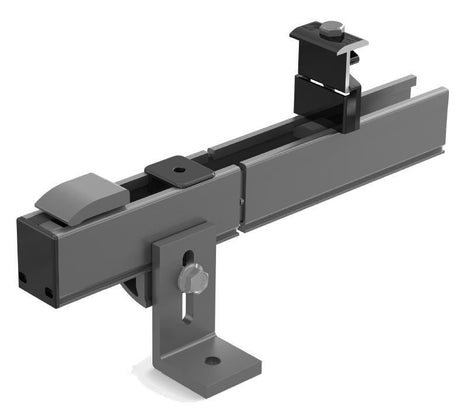

1. Roof Mount (Flush Mount FM)
   Low-cost railed rooftop system with multiple rail length options, internal splice design, and strong wire management.

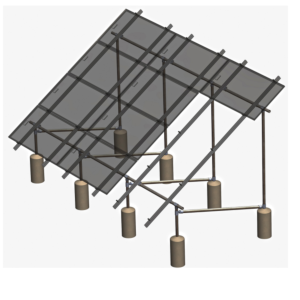

2. Ground Mount System & Kits
   Simple, scalable ground arrays using Tamarack rails with locally sourced 2" schedule-40 pipe (pipe/concrete purchased locally).
3. Pole / Wall Mounts
   Vertical mounting options for 1–6 modules with adjustable tilt, ideal for smaller or site-specific installs.
4. Adjustable Ground / Roof (UNI-GR)
   Standalone or intertied mounts with telescoping legs and adjustable tilt range for off-grid or flat-roof use cases.

Buying guide

Not sure what you need? Start here:

• Roof: Choose rail height/finish + roof attachment type (Flush Mount supports many attachment styles that use a 5/16" bolt).
• Ground: Decide 3- or 4-module columns and your target tilt (system supports 0–45° tilt).
• Pole/Wall: Pick your module count and orientation; many options support seasonal tilt adjustment.
• Adjustable UNI-GR: Confirm your module width + rear mounting holes; choose 90" vs 130" rails; tilt adjusts 20–60°.

FAQs

Are Tamarack systems UL 2703 listed?
Flush Mount and Ground Mount systems list UL 2703 compliance for bonding/grounding components.

What module frames fit Tamarack clamps?
The 5050 clamp is specified for common 30-40mm frames; 5050+ covers thicker frames (ranges vary by product).

Do ground mounts include pipe and concrete?
No, Tamarack’s Ground Mount system uses locally sourced 2" schedule-40 pipe and concrete purchased locally.

Can I use the roof rails on metal roofs?

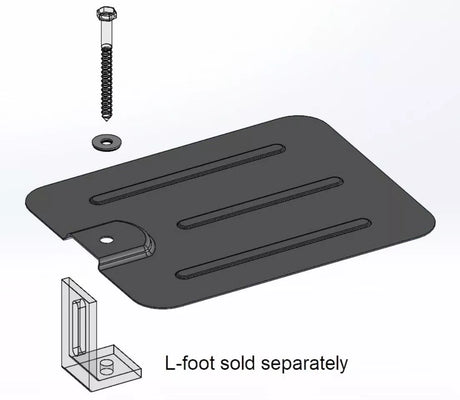

Flush Mount rails are designed to work with Tamarack flashings, S-5! clamps, or other roof attachments that use a 5/16" bolt.

Are stamped engineering letters available?
Ground Mount mentions pre-stamped engineering letters for most states; UNI-GR notes stamped engineering isn’t available for that product.
