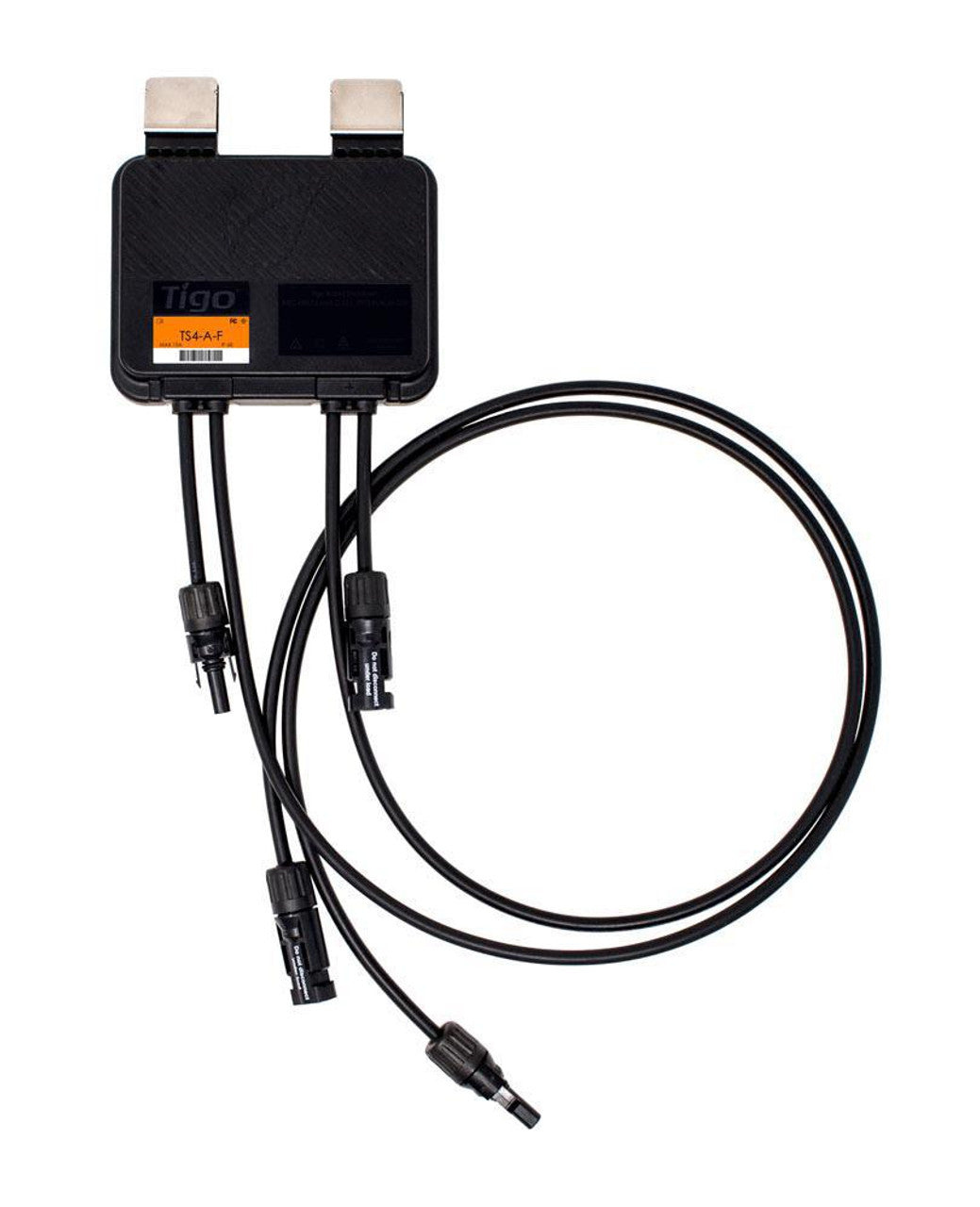

Tigo TS4-A-F Rapid Shutdown Device (RSD)
Important: The TS4-A-F must be paired with a Tigo RSS Transmitter (many inverter brands have one built in).
What It Does
-
Rapid Shutdown for single-module circuits (1 module : 1 TS4)
-
Meets NEC 2014, 2017 & 2020 PV rapid-shutdown mandates
-
Communicates over PLC for plug-and-play compatibility with hundreds of UL-listed inverters
Key Specs
-
Power Handling: up to 700 W per channel
-
Voltage Range: 16–80 V DC
-
Current: up to 15 A
-
Connectors: MC4 (standard)
-
Mounting: snaps directly to module frame—no ground wire required
-
Enclosure & Safety: IEC + UL certified; UL PVRSS approved (largest inverter network)
-
Warranty: 25 years
Why Choose the TS4-A-F?
-
Code Compliance Made Easy – one of the simplest ways to satisfy U.S. rapid-shutdown rules.
-
Broad Inverter Support – works with leading brands whose inverters include—or pair with—a Tigo RSS Transmitter.
-
Tool-Free Installation – frame-mounted design and MC4 leads speed up rooftop labor.
Configuration: Install one TS4-A-F per solar module to guarantee module-level shutdown and keep your PV system both safe and code-compliant.
