Complete Hybrid Solar Kit - Sol-Ark 15K Hybrid Inverter | 15kW 120/240V Output | 48V 310AH 16.1kWh Midnite Solar AllWeather Lithium Battery | 13.5kW+ Solar PV

Sol-Ark 15 kW Hybrid Inverter + MNPowerflo16 16.1 kWh Battery Solar Kit

Complete Solar Kit - Solar Panel and Storage Bundle

Take control of your energy with Sol-Ark’s flagship 15 kW hybrid inverter paired to MidNite Solar’s rugged 16.1 kWh LiFePO4 (Lithium Iron Phosphate) battery—and finish the job with lightning-grade surge protection, a code-compliant disconnect, and your choice of ultra-efficient bifacial or TOPCon modules. Designed for seamless backup, aggressive time-of-use savings, and future virtual-power-plant participation, this turnkey package is ready for rooftops, ground mounts, or carports.

Why This Kit Wins

Flagship Power Electronics
15 kW continuous / 20 kW 10 s surge
19.5 kW PV input across three MPPT trackers
< 5 ms transfer keeps servers and smart-home gear online
200 A grid pass-through for whole-home or large sub-panel backup

Long-Life Lithium Storage
16.1 kWh usable (51.2 V × 314 Ah)

8,000 cycles at 80 % depth of discharge

Outdoor NEMA 3R wall or floor mount with self-heating for cold climates
Battery-agnostic CANbus & RS-485 ports for future expansion

Rock-Solid Protection & Balance of System
3× MidNite Solar MNSPD600 surge protectors shield PV, battery, and AC outputs up to 600 V

2x IMO DC/ESS disconnect provides rapid, code-compliant isolation

3x pre-terminated 50 ft red & 50 ft black MC4 10 AWG PV wire pairs speed installation

Choose Your Premium Solar Module Set

• 36x Hyperion by Runergy 400 W bifacial panels – lightweight PERC cells with strong backside gain; ideal when roof loading is a concern.

• 30x Canadian Solar 450 W n-type TOPCon panels – best-in-class low-light behavior and stellar temperature coefficient for high annual yield.

• 31x Aptos 460 W bifacial panels – DNA-split-cell architecture delivers extra watts on reflective surfaces such as white roofs or snow.

• 31x CW Energy 550 W bifacial panels – large-format modules mean fewer units, faster racking, and reduced labor on ground mounts.

(Select the module that suits your space, weight limits, and installation schedule; each option can be sized to approach the inverter’s 19.5 kW PV limit.)

Key Specifications

Sol-Ark 15K-2P Hybrid Inverter
Continuous AC Output: 15,000 W
Max PV Input: 19,500 W
MPPT Voltage Range: 125 – 425 V DC
Battery Voltage Range: 43 – 63 V (48 V nominal)
Charge/Discharge Current: ≤ 275 A
Transfer Time: < 5 ms
Grid Outputs: 120/240 V split-phase or 120/208 V three-phase

MNPowerflo16 LiFePO₄ Battery
Usable Energy: 16.1 kWh
Cycle Life: 8,000 cycles @ 80 % DoD, 25 °C
Operating Temp: –20 °C – 50 °C with self-heating
Enclosure: NEMA 3R outdoor rated
Communications: CANbus / RS-485

Ideal Applications

• Whole-home or essentials backup in grid-tied residences
• Small businesses and farms with high-surge loads (HVAC, pumps, EV chargers)
• Off-grid cabins requiring weather-resilient hardware
• NEM 3.0 self-consumption and future virtual-power-plant revenues

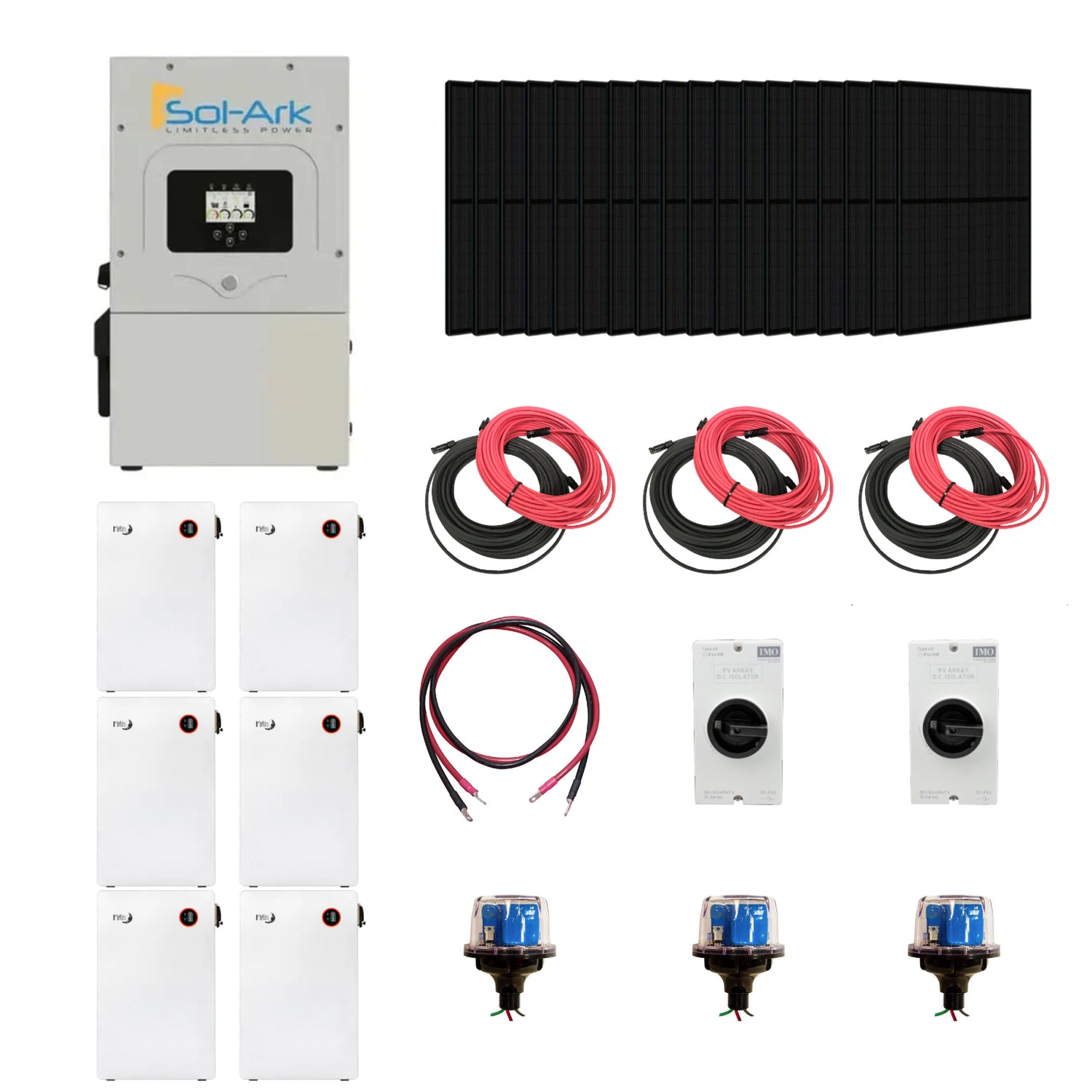

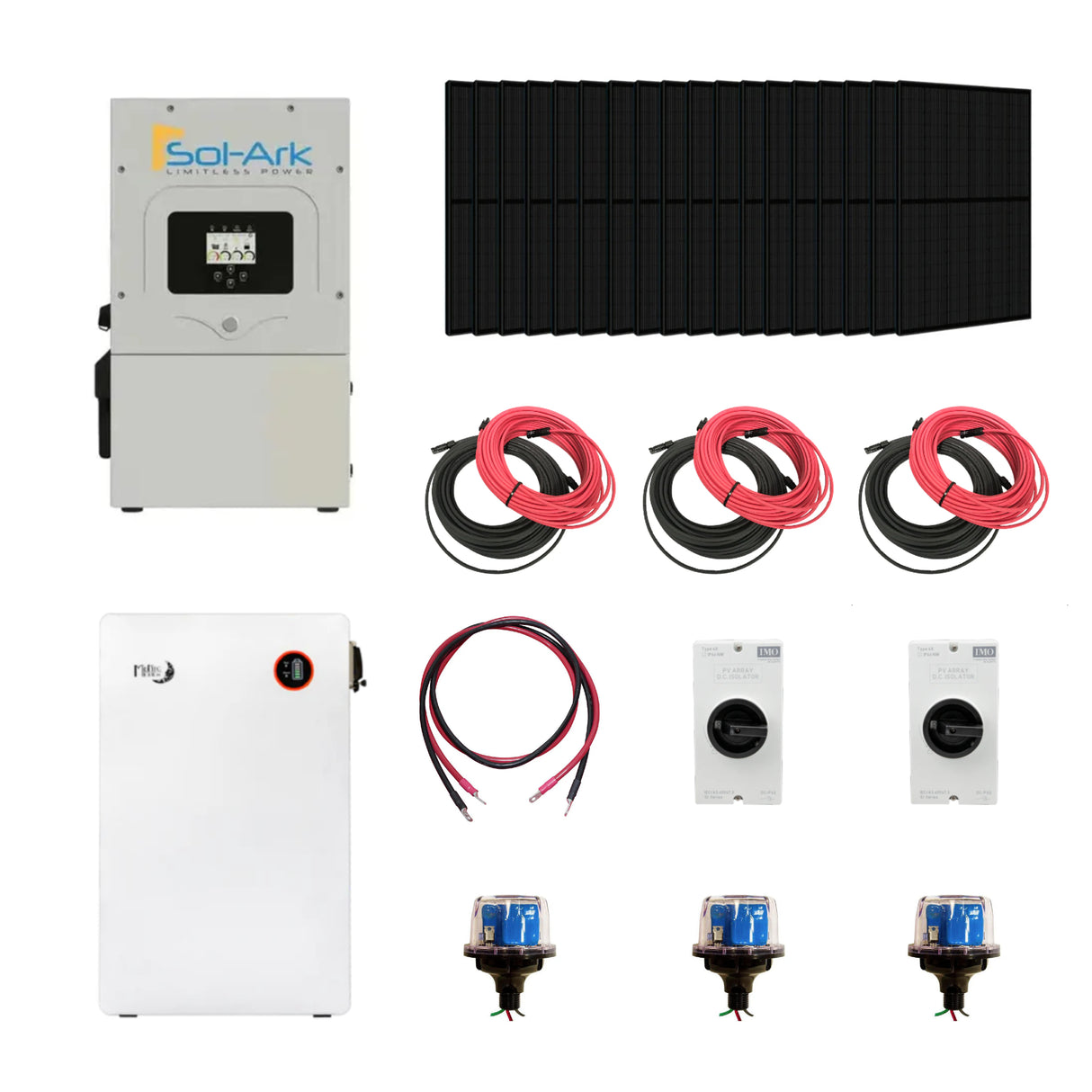

What’s in the Box

• 1 × Sol-Ark 15K-2P hybrid inverter (indoor/outdoor)
• 1 × MidNite Solar MNPowerflo16 16.1 kWh LiFePO₄ battery with mounting hardware
• Your selected set of premium solar panels (Hyperion 400 W, Canadian Solar 450 W, Aptos 460 W, or CW Energy 550 W)
• 3 × MidNite Solar MNSPD600 surge protectors
• 1 × IMO DC/ESS disconnect switch
• 3 pairs of 50 ft MC4-terminated 10 AWG red & black PV wires
• Battery-to-inverter cables, rapid-shutdown transmitter, user manuals, wiring schematics, and lifetime Michigan-based tech support

Order Now & Power Up Fast

Secure this customizable solar-plus-storage powerhouse today. Add your preferred panel option to the cart, or contact our NABCEP-certified team for help with array sizing, permitting, and financing. Energy security, savings, and grid freedom are just one click away.
