IntegraRack IR-30 Solar Panel Ground Mount | 30 Degree Angle | Aircraft Grade Aluminum

IntegraRack IR-30 Solar Panel Ground Mount | 30 Degree Angle | Aircraft Grade Aluminum

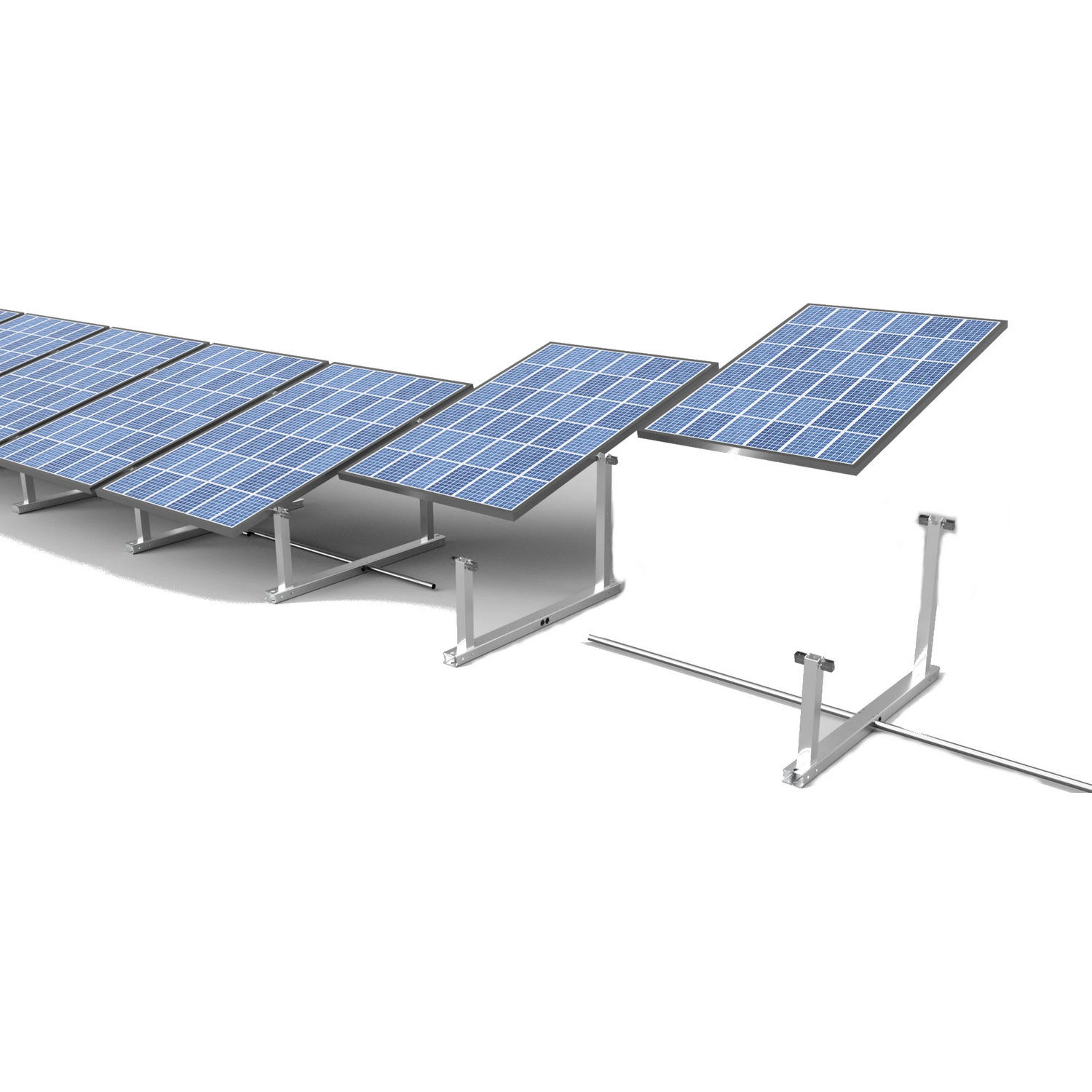

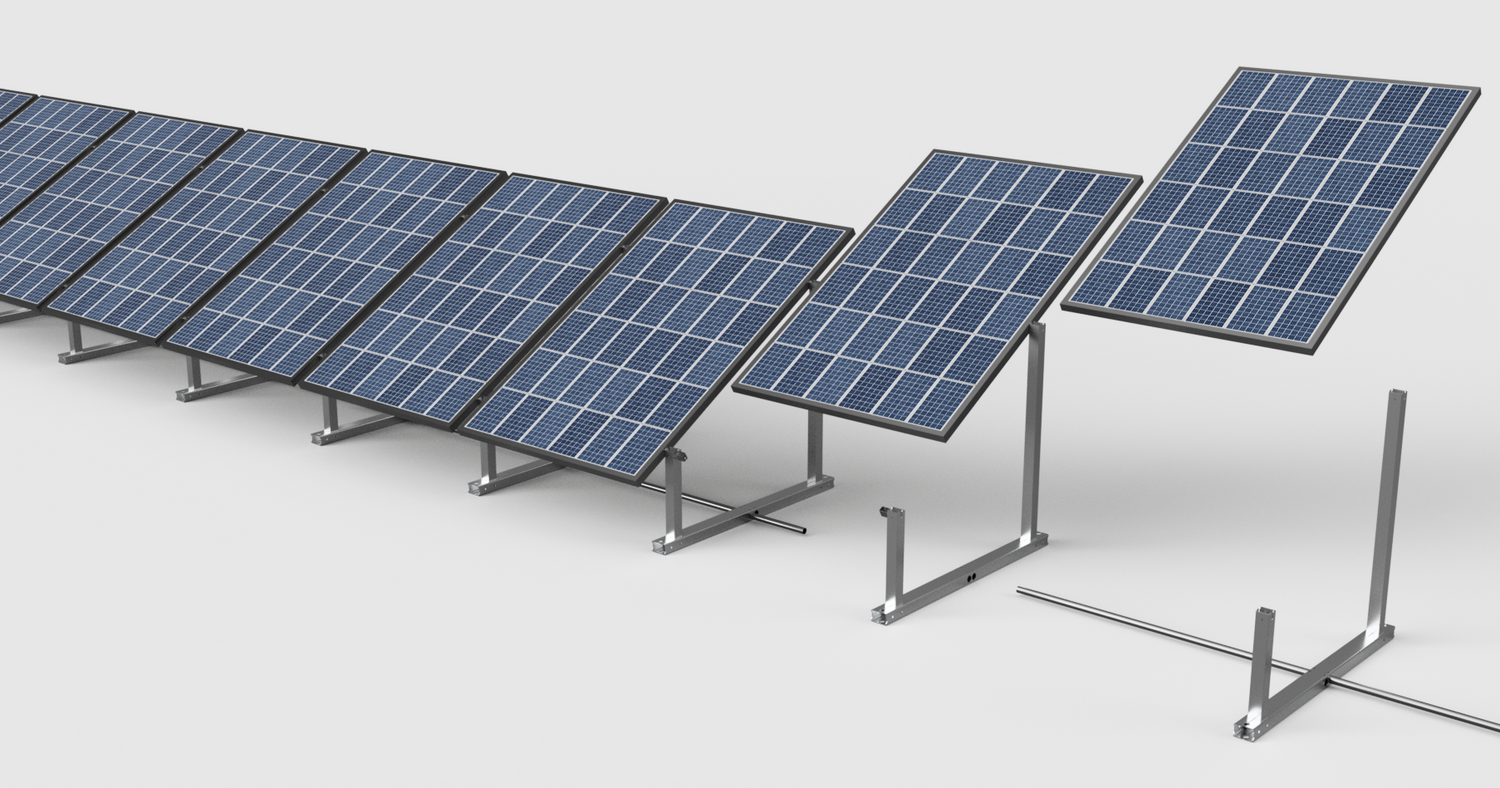

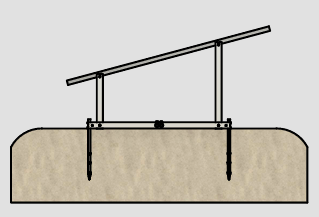

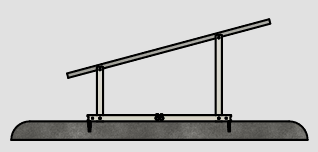

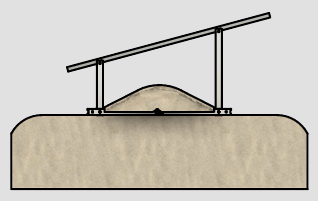

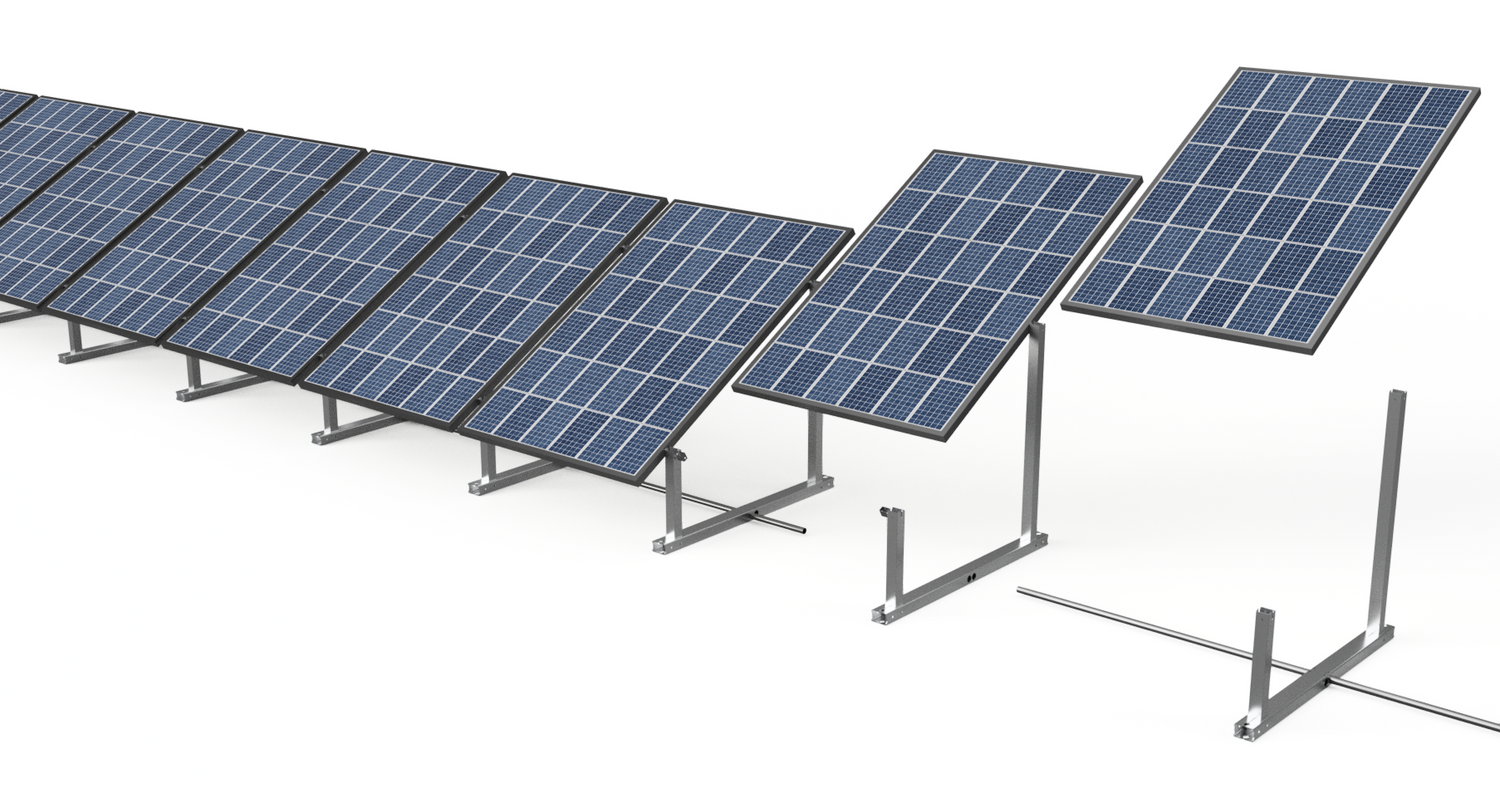

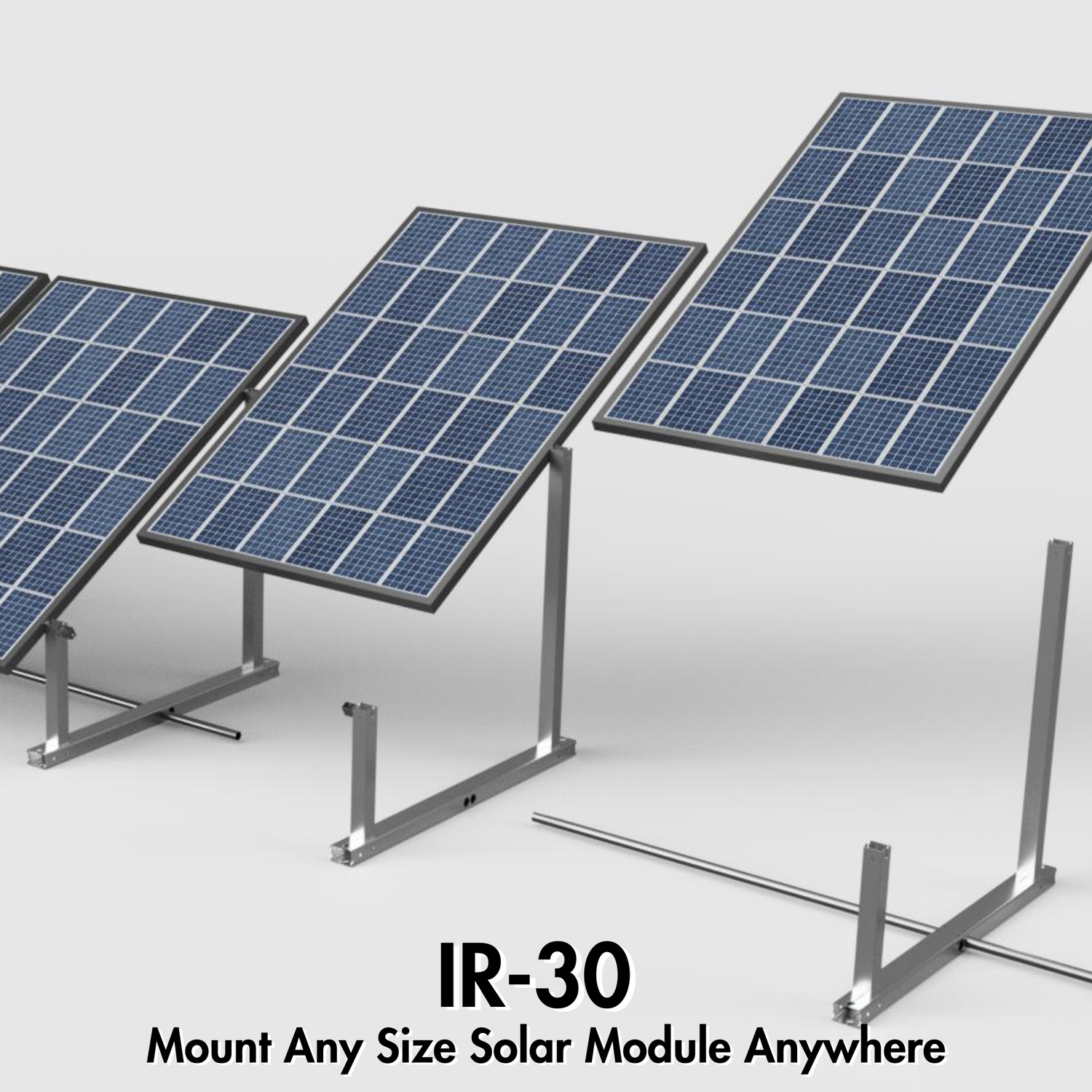

The IntegraRack IR-30 is a scalable, DIY-friendly racking system for any size solar array.  These racks can be secured with innovative anchoring systems such as EarthBallast, AnchorSpike, Concrete anchors,  or even concrete curb stops or low-profile water tanks – installation has never been easier!

• No earth augers, concrete piles, or post ponding required

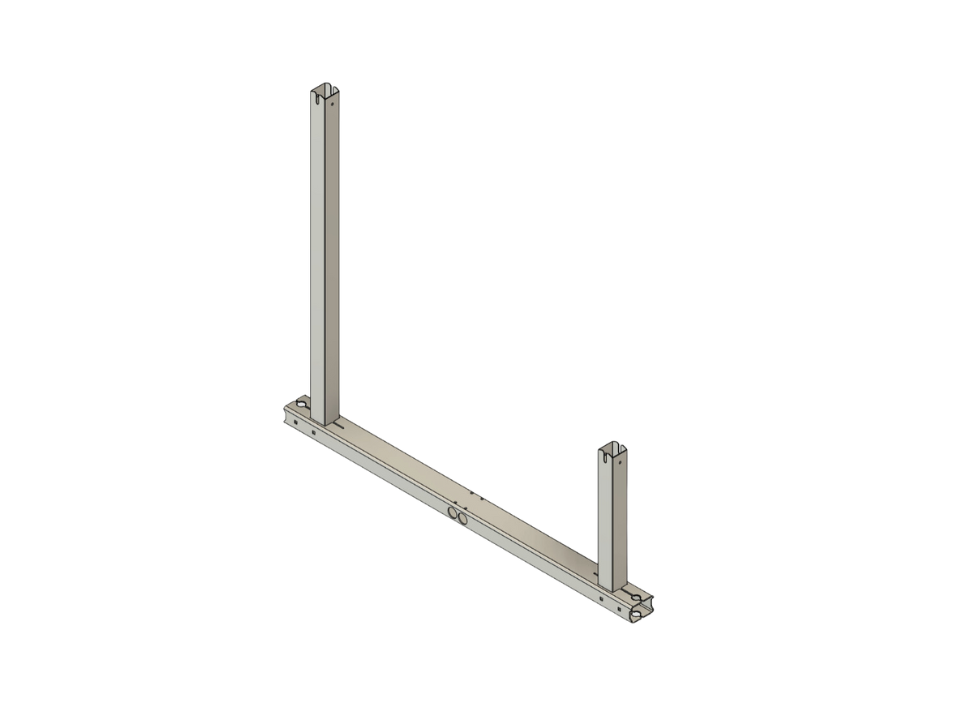

• Each frame is laser-cut from high-grade aluminum, and secures to panels with stainless-steel hardware
• Compatible with any full-size (300W+) solar module without any modification to the module
• Holds the panels at a 30-degree angle.  Also available in 15 degree and 15-45 degree adjustable versions
• Ships in a compact box via ground parcel transport – no need for expensive freight deliveries
• When purchasing these mount, you will require one more mount then the solar panels you need (Ex: 4 panels, 5 mounts)
• The price shown is for one individual frame

Included Hardware:

(4) IR-F2 Flange Clamp Bonding Brackets
(4) M8-1.25 x 90mm Carriage Bolts
(4) M8-1.25 Serrated Nuts
(4) M8-1.25 x 16mm Thread Cutting Bolts

Data & Engineering Sheet: Download

Installation Instructions: Download
