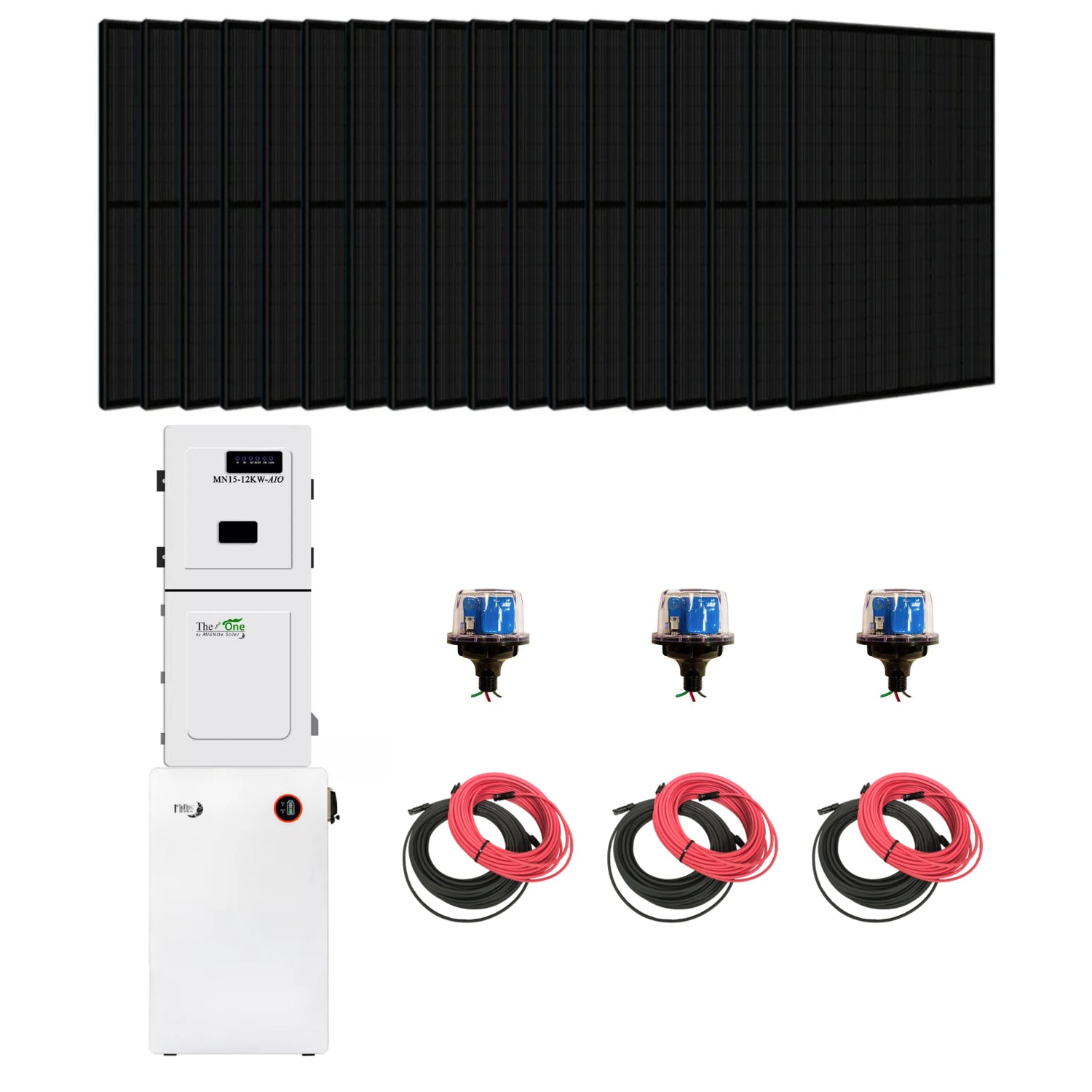

MidNite Power Complete Hybrid Solar Kit | KIT-MIDNITE-01

Key Benefits

• Complete Hybrid Solar Kit (Pre-Matched + Tested) - eliminates compatibility and design guesswork
• 11.4kW Output, 120/240V Split-Phase - power essential loads or whole-home circuits (site-dependent)
• 14.2kW+ Solar PV Input (15kW PV rating) - maximize solar harvest with high-voltage array support
• Expandable 48V LiFePO4 Storage (16.1–48kWh) - start small, scale later (1–3 batteries)
• 8,000+ Cycle LiFePO4 Battery - long service life with active balancing and integrated BMS
• Self-Heating + IP65 Outdoor-Rated Battery - reliable winter charging and rugged outdoor installation

About This Kit

The KIT-MIDNITE-01 MidNite Power Hybrid Solar Kit is a complete, professionally matched hybrid solar + battery backup system designed for grid-tied backup and off-grid operation. Built around the MidNite Power TheOne hybrid inverter and the MNPowerflo16 48V LiFePO4 battery, this system delivers dependable split-phase power while giving you an easy path to expand energy storage as your needs grow.

Unlike piecing together components yourself, this complete hybrid solar kit removes the common failure points of DIY compatibility—inverter-to-battery communication, voltage matching, and system sizing. Everything arrives selected to work together so you spend less time researching and more time installing and producing power.

Built for real-world conditions (hot summers + cold winters)

The MNPowerflo16 battery is engineered for year-round performance with:

• Integrated BMS for safety and reliability
• Self-heating technology to support charging in low ambient temperatures
• IP65-rated enclosure for outdoor wall-mount installs
• Active cell balancing for long-term consistency and longevity

Expandable storage that protects your investment

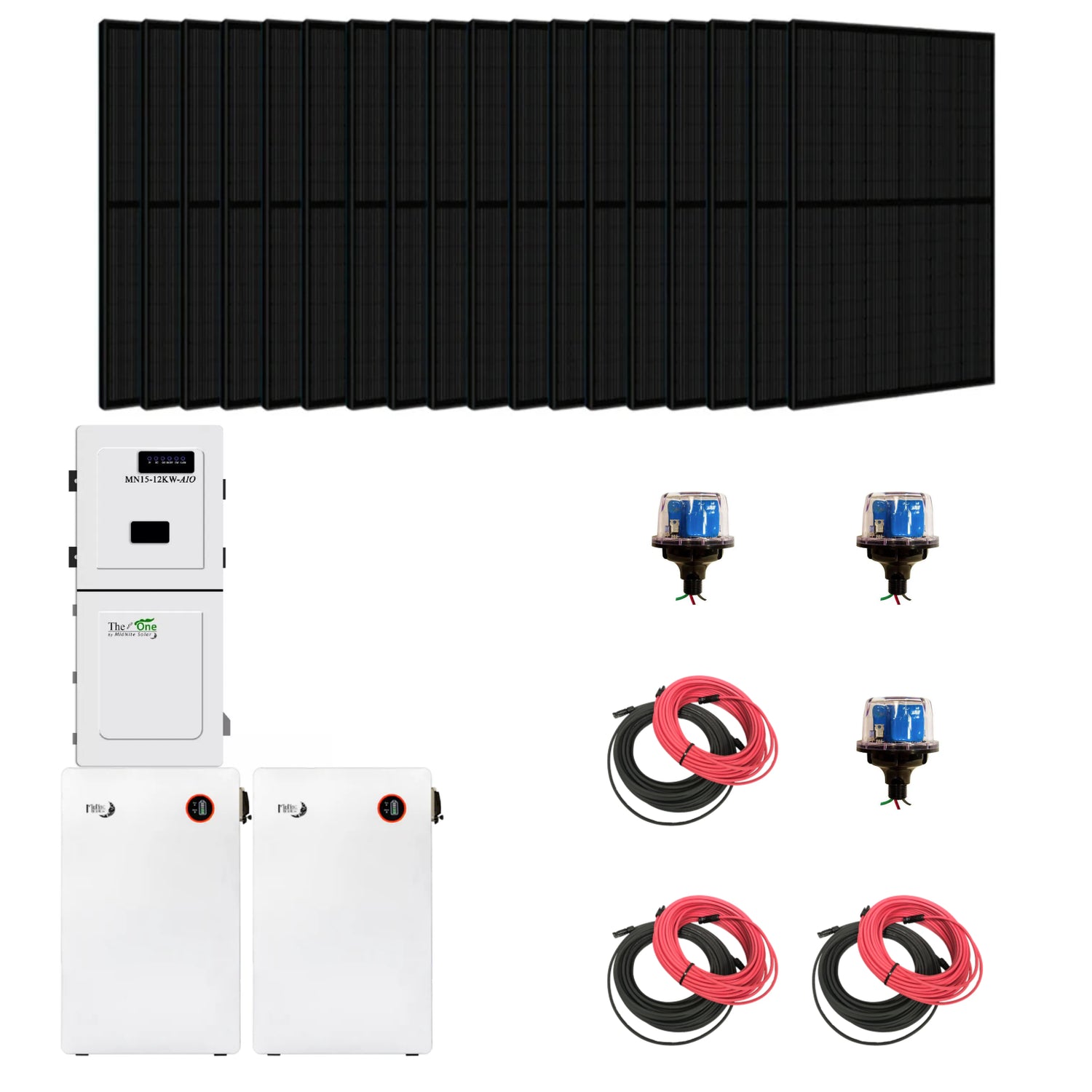

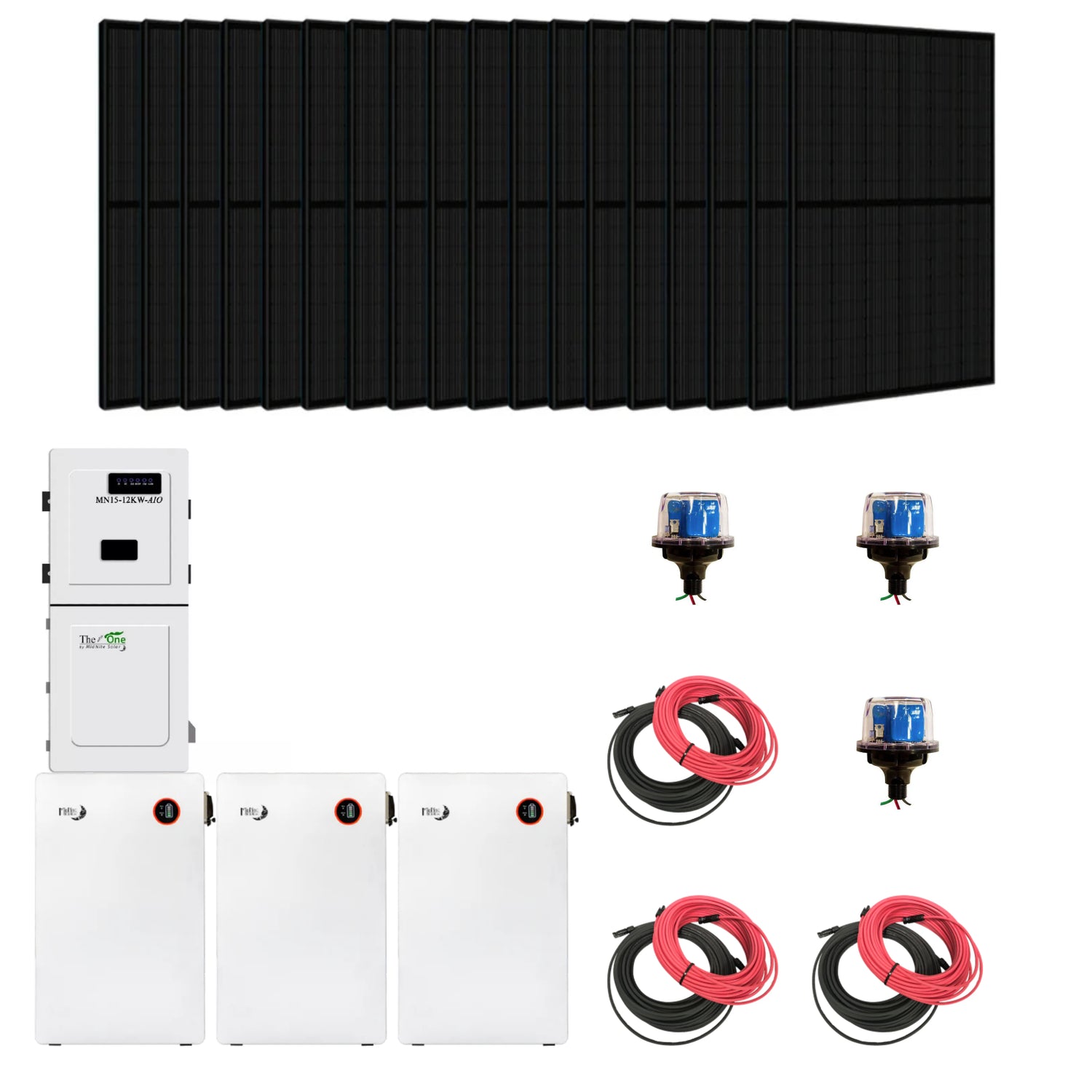

Start with 16.1kWh to cover essential backup loads, then expand to 32.2kWh or 48.3kWh (1–3 batteries) as your home energy usage increases—or as EV charging, shop equipment, or additional circuits become part of your plan. This modular approach means you’re building on a scalable platform instead of replacing an undersized system later.

Different Solar Panel Options

1. 20× Canadian Solar 710W Bifacial (Silver) - 14.2 kW
   Bifacial high-wattage panels for increased energy yield
2. 36× TaleSun 445W N-Type Bifacial (Black) - 16.0 kW
   N-type bifacial performance; strong low-light response; sleek all-black look
3. 33× Canadian Solar 445W Mono PERC Bifacial (Silver) - 14.7 kW
   High-efficiency mono PERC with bifacial boost for added production

Electrical Components

• 50ft 10 AWG Copper PV Wire | Black and Red (4 pc.)
• IMO DC Disconnect Rooftop Isolator Switch (2 pc.)
• 72in 4/0 AWG Battery to Inverter Cables | Black and Red (1-3 pc.)
• Midnite Solar Lightning and Surge Arrestor | 600DC | MNSPD-600C (4 pc.)
• Midnite Solar MNBCB 1000/50 Battery Combiner for 2 or more battery options.


FAQs

Is this kit for grid-tied backup or off-grid?
Both. It’s a hybrid solar kit designed for grid-tied backup and off-grid operation, depending on your installation and local requirements.

How much battery storage do I get?
You can choose 1–3 MNPowerflo16 batteries, totaling 16.1kWh, 32.2kWh, or 48.3kWh.

Can I expand later?
Yes, this kit is built around modular 48V LiFePO4 storage, so you can scale capacity as your needs grow.

Will the battery charge in cold weather?
The MNPowerflo16 includes self-heating technology, helping support charging in low ambient temperatures (within the product’s operating limits).

What makes this better than assembling components myself?
It reduces the risk of incompatibility and design errors because the core components are pre-matched to work together.

Note: Additional battery interconnect cables and busbars required when installing 2 or 3 battery configurations (available for purchase).
