Complete Hybrid Solar Kit | Growatt SPH 10000TL Hybrid Inverter | 15kW PV Input 120/240V 10kW Output | 16.1kWh Midnite Power Lithium Powerwall | More Than 8000 Watts of Solar PV
Couldn't load pickup availability
Description
Description
Complete Midnite Power and Growatt Hybrid Solar Kit | 8kW+ Solar Power, 10kW Output, 16kWh Energy Storage
This all-in-one hybrid solar kit pairs a Growatt 10kW inverter with a 16.1kWh MidNite LiFePO4 battery and 8kW+ of premium bifacial solar panels. In other words, everything homeowners and small businesses need to power critical loads, survive outages, and save from day one.
- Turnkey, Code-Compliant Bundle
- Whole-Home Resilience
- Scalable Architecture
About the Product
At the core of this complete hybrid solar kit is the Growatt SPH 10000TL-HU-US hybrid solar inverter; a 10kW unit with 98.1% peak efficiency, three independent MPPT trackers, and seamless on/off-grid switching. When the grid drops, the integrated automatic transfer switch keeps critical loads running without any manual intervention.
Paired with the MidNite Power MNPowerflo16, a 16.1kWh LiFePO4 battery with a built-in BMS, integrated cell heater for cold-climate performance, and outdoor-rated IP65 enclosure, this hybrid solar system delivers 8,000 charge cycles and a 15-year warranty.
With this complete hybrid solar kit, you can choose between different solar panels that match your roof and aesthetic, including Canadian Solar 705W TOPCon panels (12 panels, 8.5kW), TaleSun 445W full-black N-Type panels (18 panels, 8kW), or Canadian Solar 445W Mono PERC panels (18 panels, 8kW).
Lastly, Growatt’s Time-of-Use scheduler puts you in charge of when you buy from the grid and when you don't. It automatically shifts charging to off-peak hours and solar production, so you're rarely buying expensive peak-rate power.

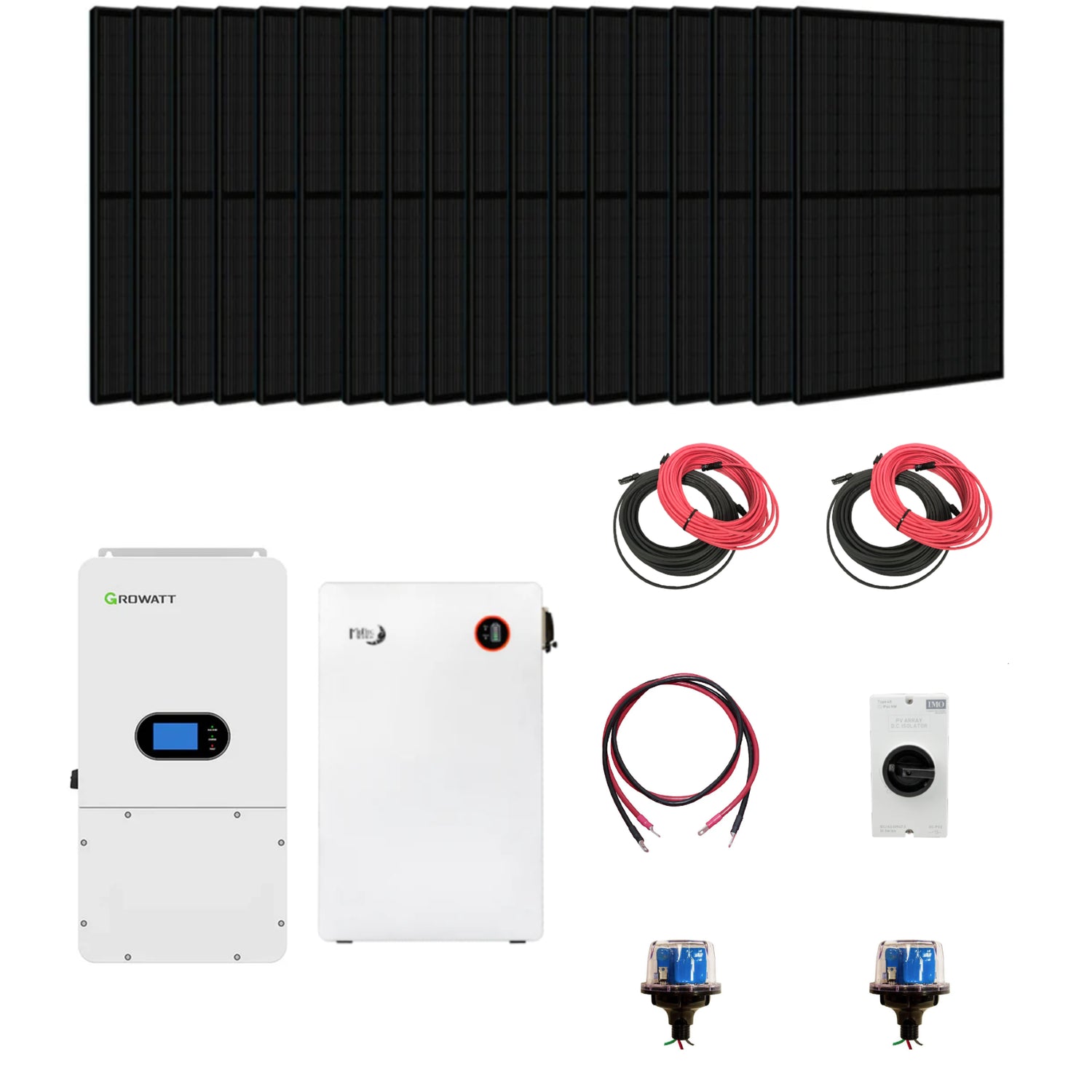

What’s Included in the Complete Midnite Power and Growatt Hybrid Solar Kit?
In this complete Midnite Power and Growatt hybrid solar kit, you get a solar inverter, battery storage, system protection and balance, and solar panels.
Inverter
|
Model |
|
|
Type |
Hybrid |
|
AC Output Power |
10,000W nominal |
|
Phases |
Split-phase |
|
Efficiency |
98.1% peak / 97% CEC weighted |
|
DC Input Voltage |
150-450V MPPT range / 130V startup |
|
MPP Trackers |
3 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
120V/208V, 120V/240V Split (180Vac - 280Vac) |
|
Operating Conditions |
-13°F to +140°F with derating above 113°F / IP65 / NEMA 4 |
|
Warranty |
10 years (manufacturer standard) |
Battery Storage
|
Model |
|
|
Type |
Lithium Iron Phosphate (LiFePO4) |
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
314Ah |
|
Energy |
16.1kWh |
|
Cycle Life |
8,000 cycles @77°F (25°C) 0.5C/0.5C |
|
Communication Interfaces |
CAN/RS485/RS232 |
|
Scalable |
Up to 16 units |
|
IP Rating |
IP65 |
|
Dimensions |
31.50 x 19.69 x 8.94 inches |
|
Weight |
284lbs |
System Protection and Balance
- 2x MNSPD600 Surge Arrestors (AC + PV sides)
- 1x IMO DC Disconnect (rooftop array isolation)
- 1x Pair of 4/0 AWG battery-to-inverter cables (pre-lugged, UL-listed, 72 in.)
- 2x 50 ft PV wire runs (10 AWG, red & black, MC4-terminated)
Solar Panels
You can choose one of the three options below:
- Canadian Solar 705W TOPCon panels (12 panels, 8.5kW)
- TaleSun 445W full-black N-Type panels (18 panels, 8kW)
- Canadian Solar 445W Mono PERC panels (18 panels, 8kW)
