Midnite Solar MNBCB 2000/200 Battery Combiner

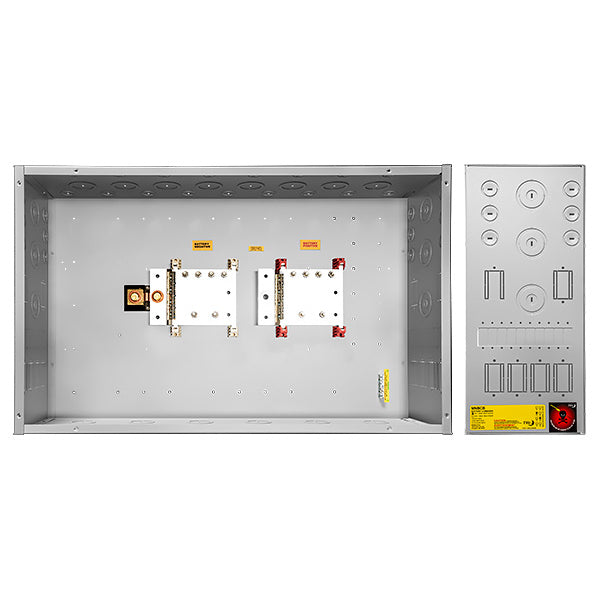

MidNite Solar 2000A Battery Combiner Box

The MidNite Solar 2000 Amp Battery Combiner Box is a heavy-duty power distribution solution designed for safely combining multiple battery strings in solar, off-grid, backup power, and energy storage systems. Built with powder-coated steel and made in the USA, this battery combiner box includes both positive and negative 2000A bus bars with 3/8-inch studs, plus a 2000A 200mV shunt with a 1/2-inch customer connection bolt.

Engineered for flexibility, cables can be double lugged, and the copper bus bar can be drilled for additional mounting locations. For added ring terminal connections, 3/8-inch stainless steel bolts are recommended when drilling extra holes. The enclosure also includes space for up to 12 MidNite MNEDC Battery Breakers, making it ideal for larger battery bank installations that require organized, high-capacity overcurrent protection.

This indoor-rated combiner box is designed for demanding battery applications with support for up to 277VAC, 300VDC, and 4/0 wire size.

Key Features

• Heavy-duty 2000A battery combiner box for multiple battery strings
• Includes 2000A positive and negative bus bars with 3/8-inch studs
• Includes 2000A 200mV shunt with 1/2-inch bolt for customer connection
• Supports up to 12 MidNite MNEDC Battery Breakers
• Copper bus bar can be drilled for additional mounting locations
• Cables can be double lugged for flexible installation
• Durable powder-coated steel enclosure
• Type 1 indoor environmental rating
• Compatible with max wire size 4/0
• Made in the USA
• Backed by a 5-year warranty

Technical Specifications

• Brand: MidNite Solar
• Product Type: Battery Combiner Box
• Amperage Rating: 2000A
• Shunt Rating: 2000A / 200mV
• Bus Bar Stud Size: 3/8 inch
• Customer Connection Bolt Size: 1/2 inch
• Breaker Spaces: 12
• Max AC Voltage: 277VAC
• Max DC Voltage: 300VDC
• Max Wire Size: 4/0
• Environment Rating: Type 1 (Indoor)
• Material: Powder-Coated Steel
• Warranty: 5 Years
• Country of Manufacture: USA
