Tigo

Tigo High Voltage Solar + Battery Bundle | Tigo EI 11.4kW Inverter | 200A Automatic Transfer Switch | 10kWh or More Energy Storage | 10kW+ Solar PV

$10,647.40 $14,267.52
Shipping calculated at checkout.

Description

Tigo EI Whole-Home Solar Storage Bundle | 11.4 kW EI Inverter | 200A ATS | EI Battery | 10kW + Solar PV


If you want to withstand outages or cut time-of-use electricity costs, you’ll find everything you need in this hybrid inverter with battery solar bundle. It pairs the
Tigo EI 11.4kW inverter, 200A Automatic Transfer Switch, 9.9kWh LFP battery, and 8kW of solar panels into one unified, scalable solar system.

  • Automatic Grid Backup
  • Unified EI Ecosystem
  • Scalable Battery Storage

About the Product

Rising utility rates and unpredictable grid outages are pushing more toward whole-home solar backup, and this Tigo EI solar bundle is built exactly for that need. The 11.4kW hybrid solar inverter with battery offers up to 200% DC oversizing across four independent MPPTs. This means your installer can optimize the array across complex or partially shaded rooftops without sacrificing output.

The 200A Automatic Transfer Switch handles a hybrid inverter with backup switching automatically. When power goes out, supported home loads shift to LFP battery storage in milliseconds; no manual steps, no generator input required.

On normal days, built-in time-of-use optimization, self-consumption, and load-shifting modes quietly reduce what you draw from the grid, lowering your monthly bill. The Tigo EI battery uses lithium iron phosphate chemistry rated for 6,000+ cycles. What’s more, the system is scalable and supports up to four batteries per inverter (39.6 kWh). Add solar panels, and you have a complete, whole-home solar bundle.

What’s Included in the Solar Bundle?

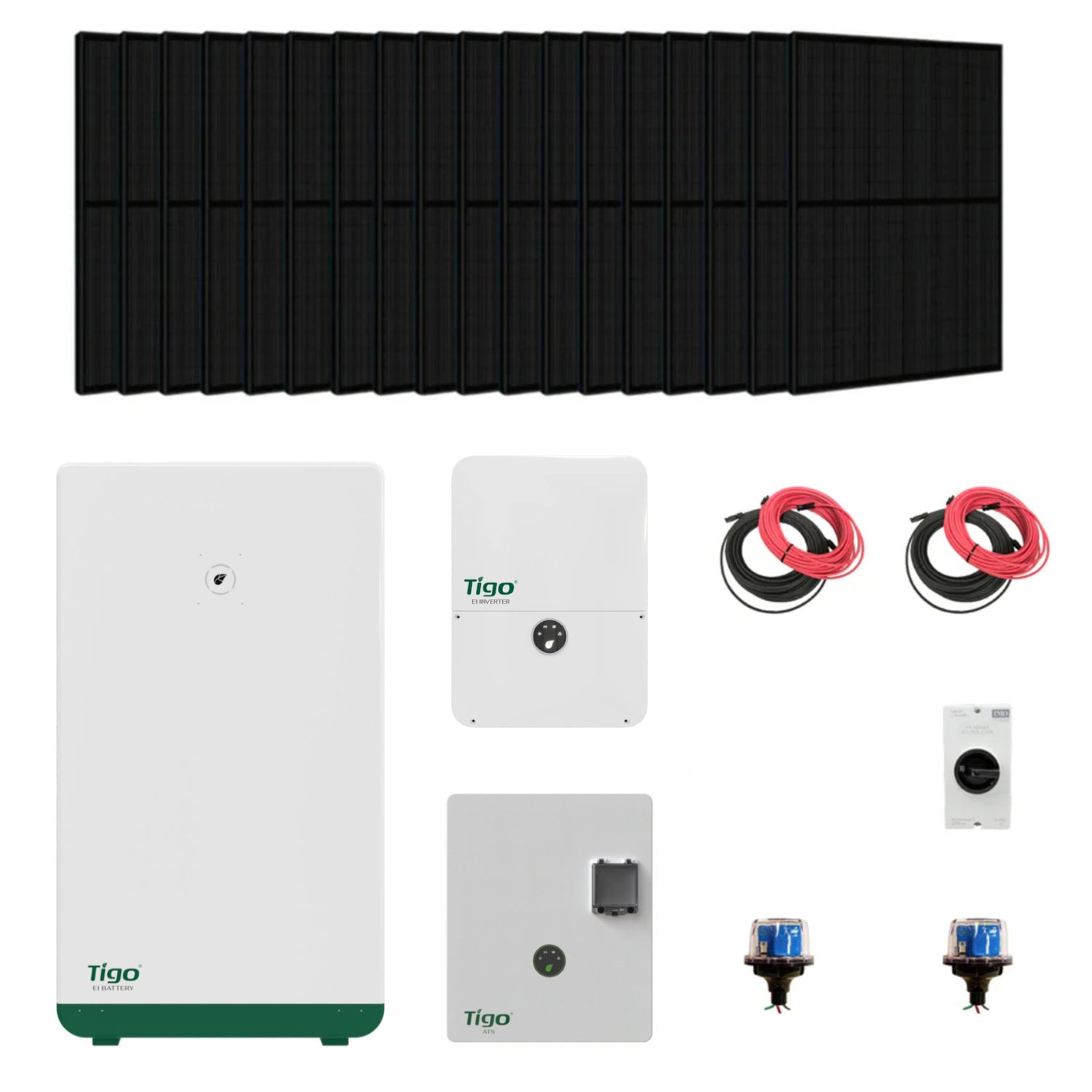

You get a hybrid solar inverter, lithium iron phosphate battery, automatic transfer switch (ATS), and solar panels in this Tigo solar bundle.

Inverter

Model

Tigo Energy TSI-11.4K

Type

Hybrid

AC Output Power

11,400W nominal

Phases

Split-phase, L1/L2/N/PE

Efficiency

98.5% max / 98.0% CEC @240V / 97.5% CEC @208V

DC Input Voltage

80V–550V MPPT range / 220V–500V full-load / 600V max system

MPP Trackers

4 independent trackers (2 strings per tracker)

AC Output Voltage

208V / 240V

Operating Conditions

−13°F to +140°F (de-rating above 113°F)

Warranty

152 months

Battery

Model

Tigo EI Battery TSB-10-US

Type

Lithium Iron Phosphate (LiFePO4)

Nominal Voltage

400V

Energy

9.9kWh per unit

Cycle Life

6,000 cycles

Communication Interfaces

CAN/RS485

Scalable

Up to 4 units

IP Rating

IP56 / NEMA 4

Dimensions

17.52 x 5.16 x 15.73 inches

Weight

308.6lbs (with battery modules)

Automatic Transfer Switch (ATS)

Tigo 200A Automatic Transfer Switch (TSS-200-US) detects grid failure instantly and shifts your home's supported loads to battery power.

Solar Panels

You can choose one of the two options below:

  1. TaleSun 445W Black (N-Type) - 18 panels, 8.0kW
  2. Canadian Solar 445W (Mono PERC) - 18 Panels, 8.0kW



Lifetime Michigan Based Support

Our Michigan-based phone support connects you directly with a live, knowledgeable representative. We are committed to providing prompt and personalized assistance, ensuring your inquiries are addressed efficiently by professionals who prioritize your needs and value your time.
